The feeder that transports powder and the reduction gear installed at the bottom of the machine were serviced. The machine was initially brought in for repair of an oil leak from the input shaft of the reducer, but during the inspection it was found that the gears, feeder shaft and other parts needed repair, so the entire machine was serviced.

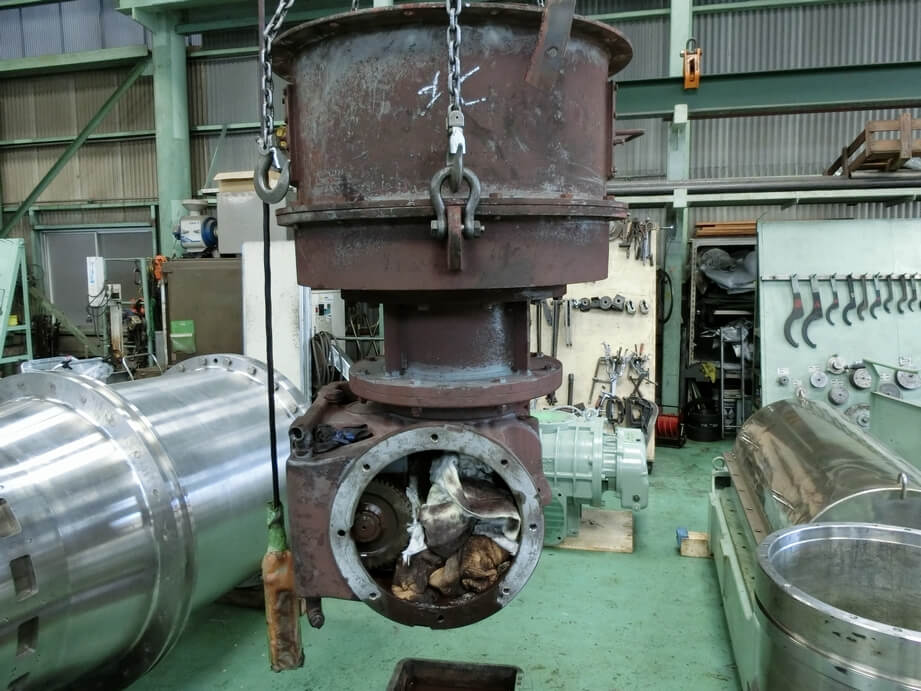

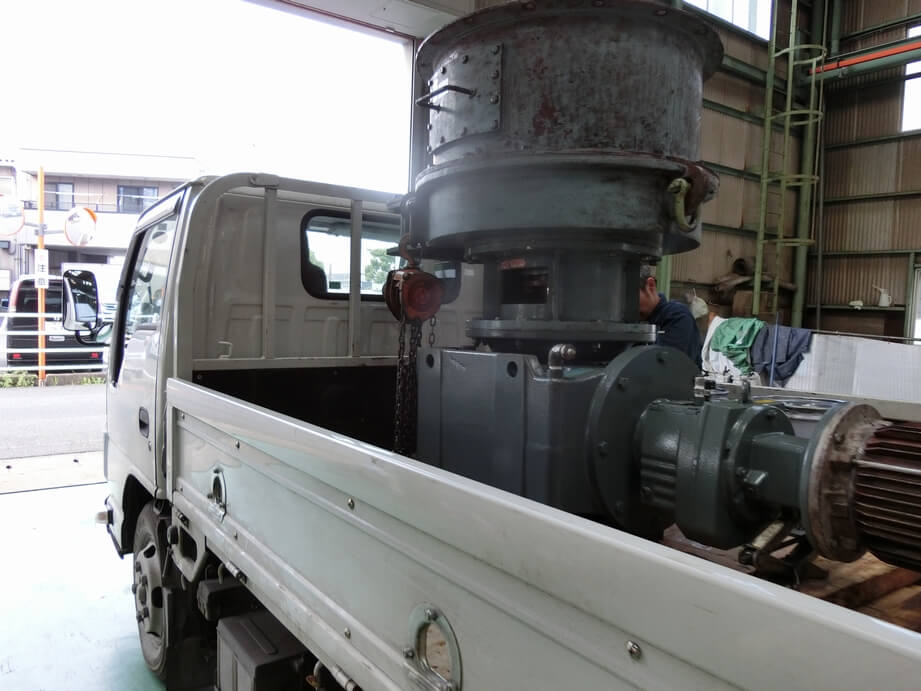

Feeder brought in and disassembled

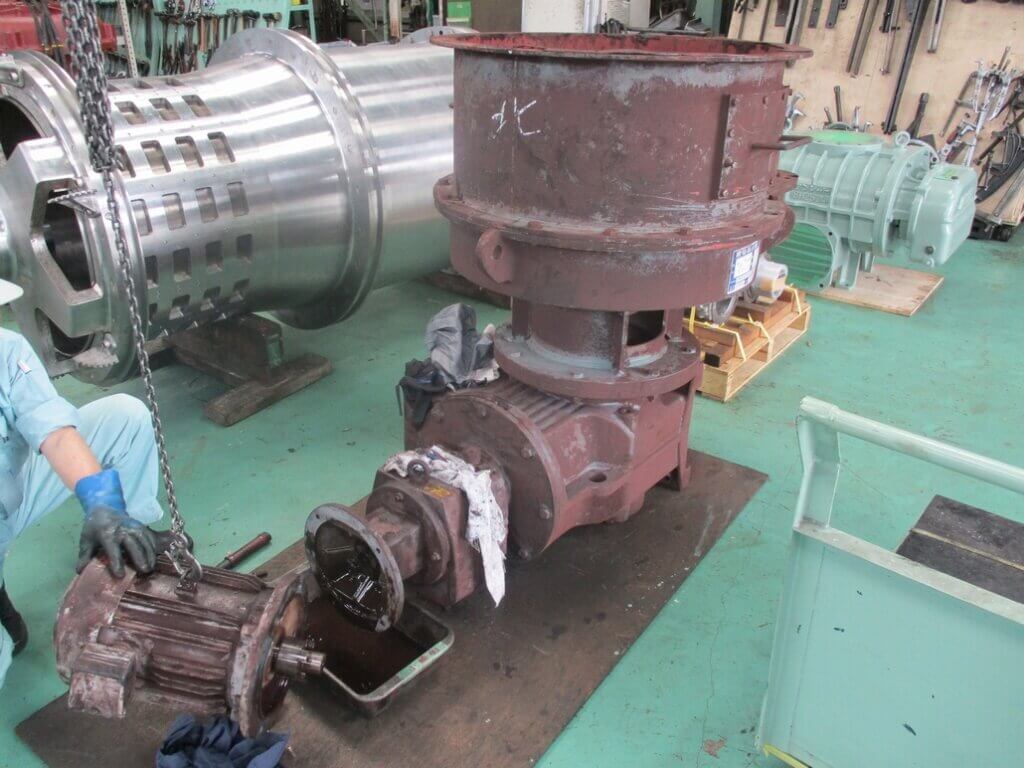

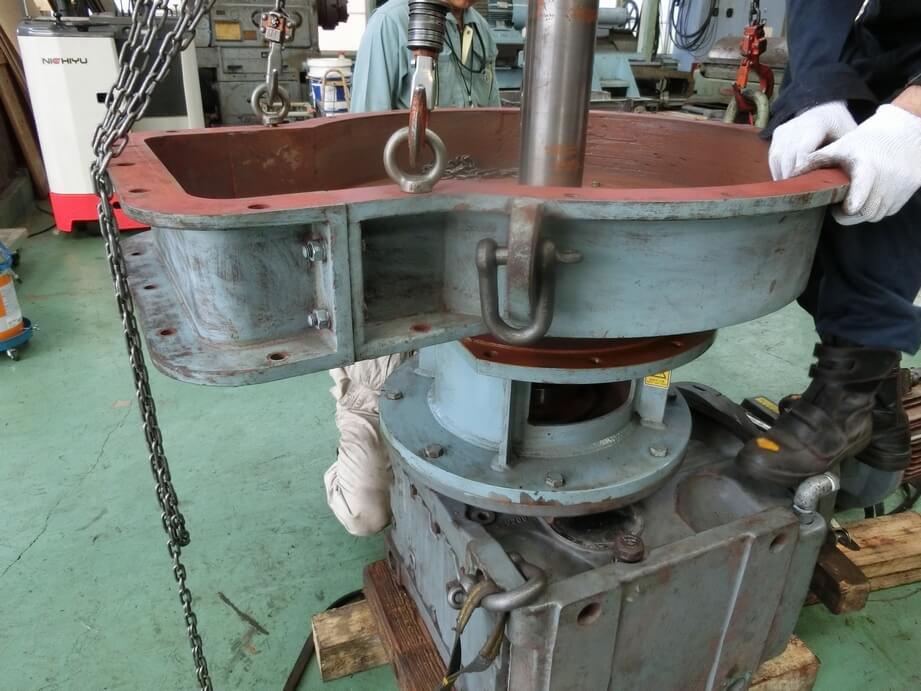

Remove the electric motor immediately. The upper side seems to be the feeder and the lower side is the reducer.
When the electric motor is removed, oil is leaking. We assume that the oil seal is defective, so we disassemble it further

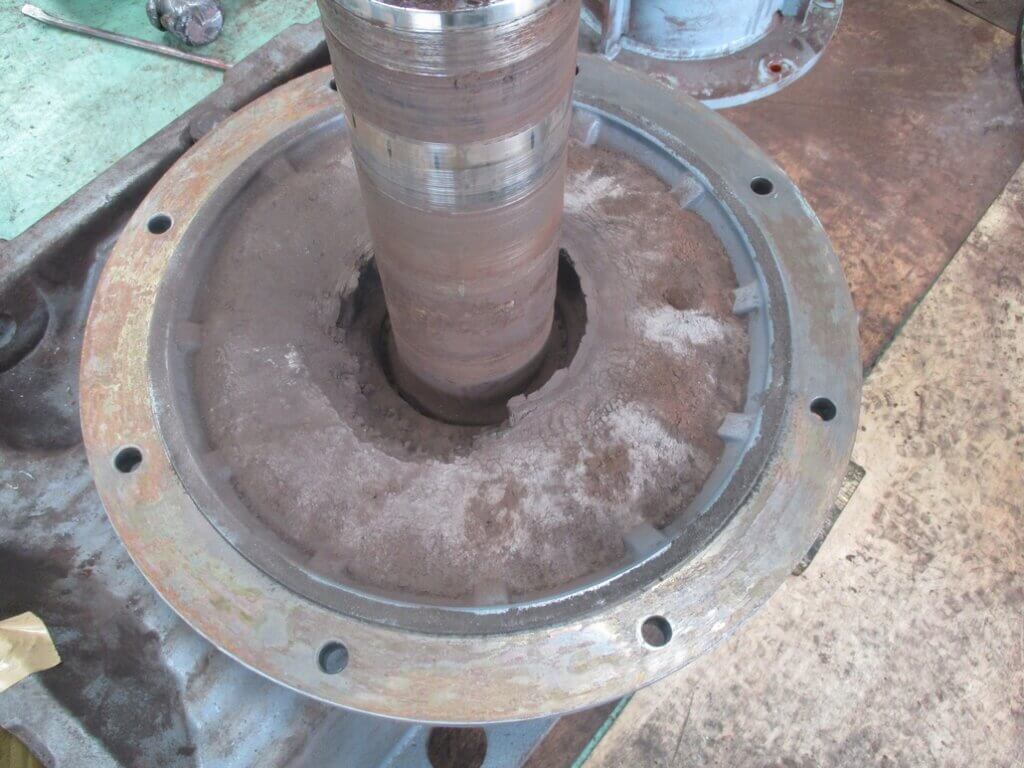

The feeder is clogged with powder. Clean up the powder and proceed with disassembly

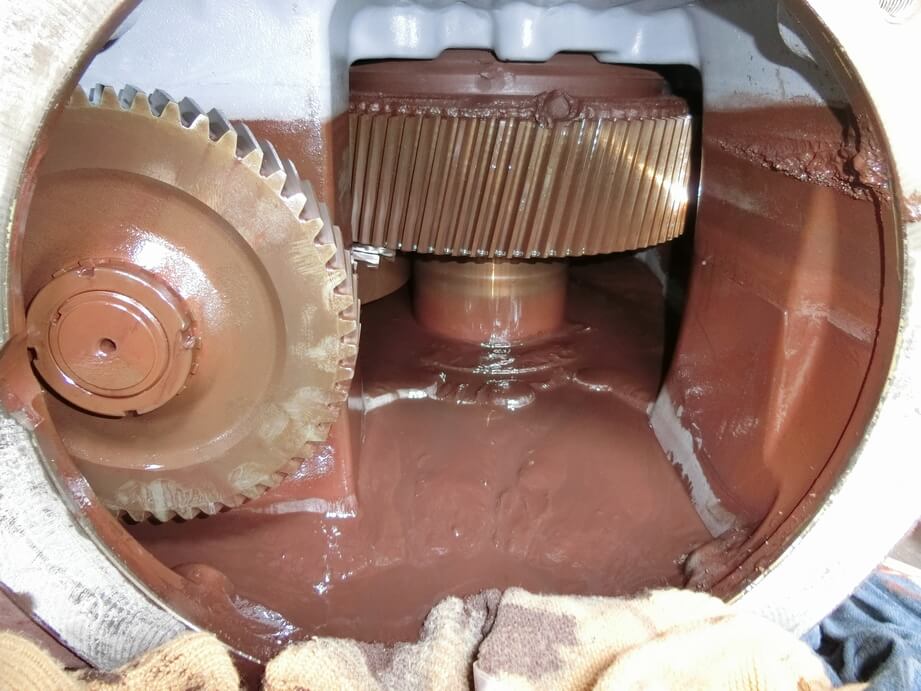

Dust is mixed in the oil. Considering contamination from feeder or defective dust seal, proceed to inspection
Before and after parts inspection and repair

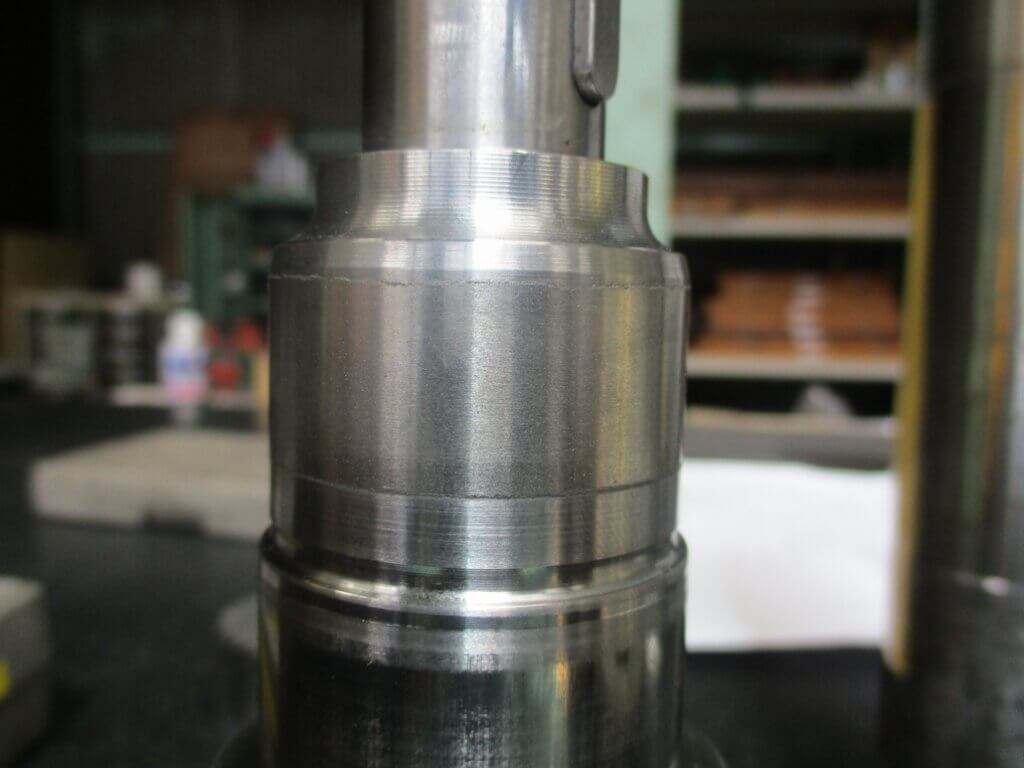

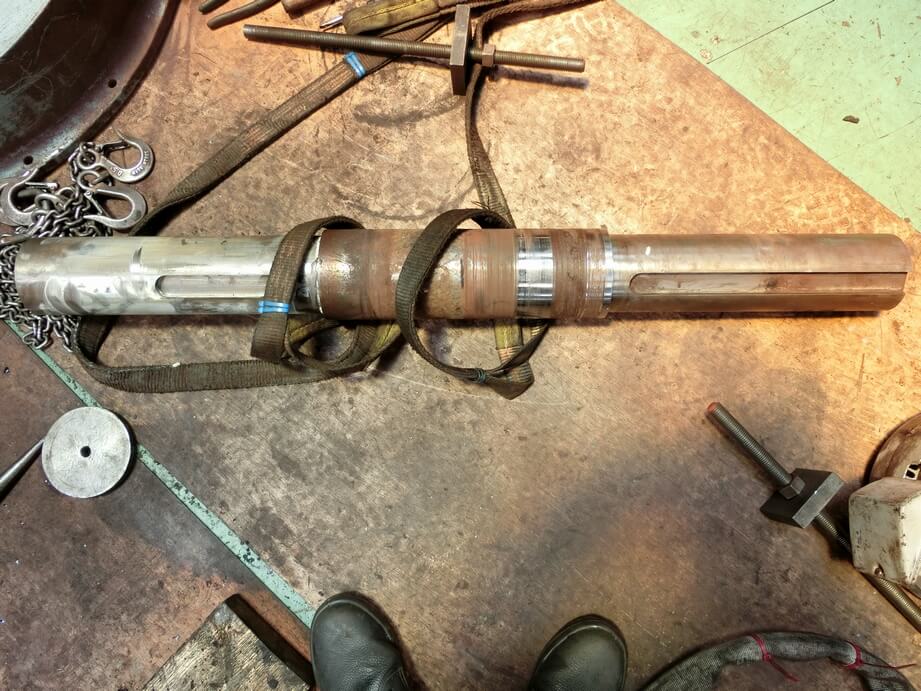

Before repairing the feeder shaft. The packing mating seems to be sliding

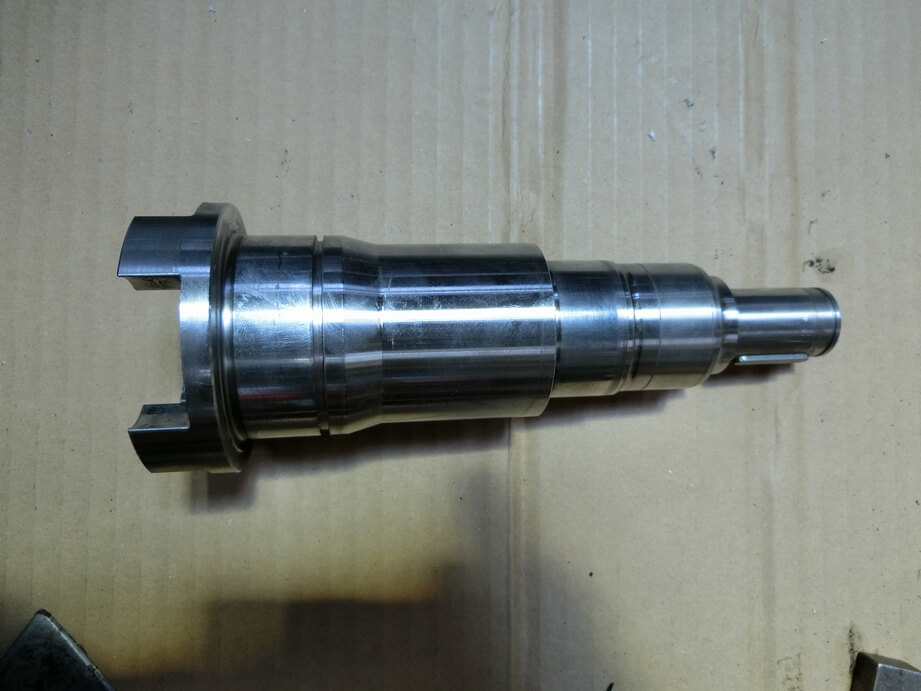

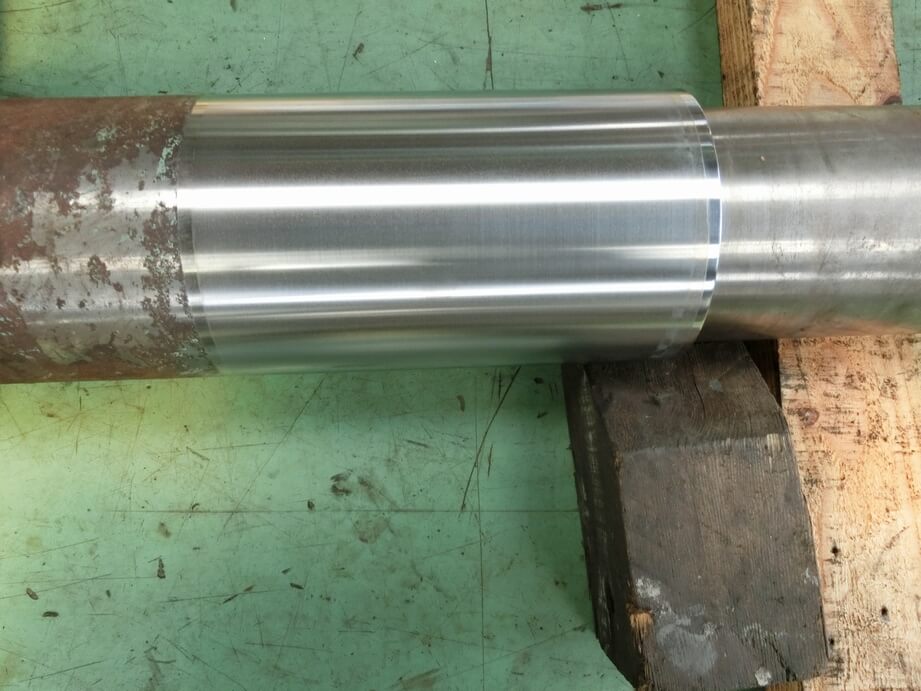

After repair of feeder shaft. The packing mating has been repaired

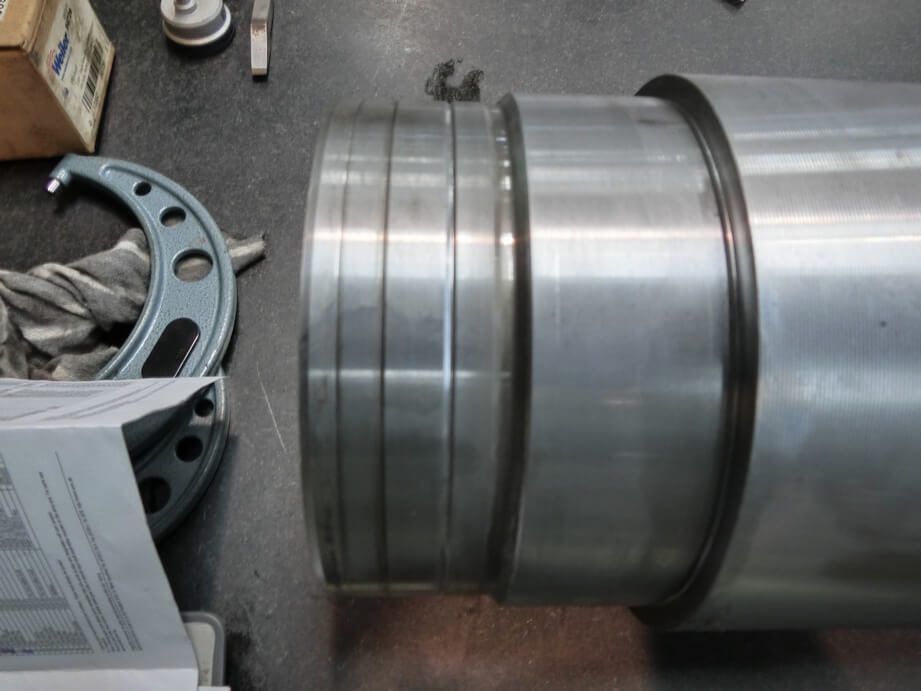

Before repairing reduction gear output shaft. Oil seal lip needs to be repaired
After repair of reduction gear output shaft. Oil seal lip marks have been repaired

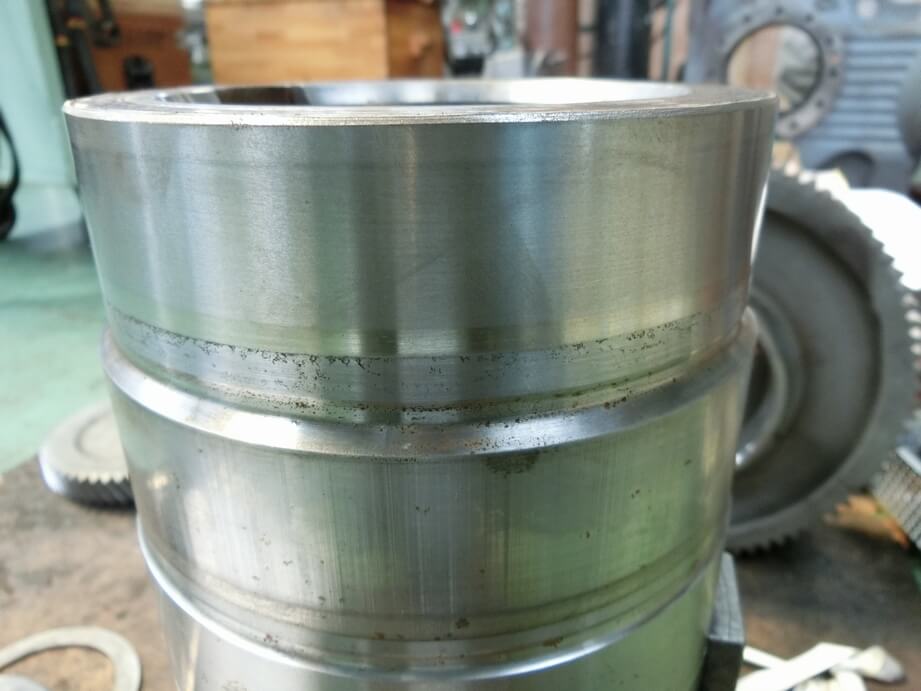

Before repairing the reduction gear shaft. The bearing mating part is also defective and must be repaired
After repair of reduction gear shaft section. Repaired mating part
Assembly and trial operation

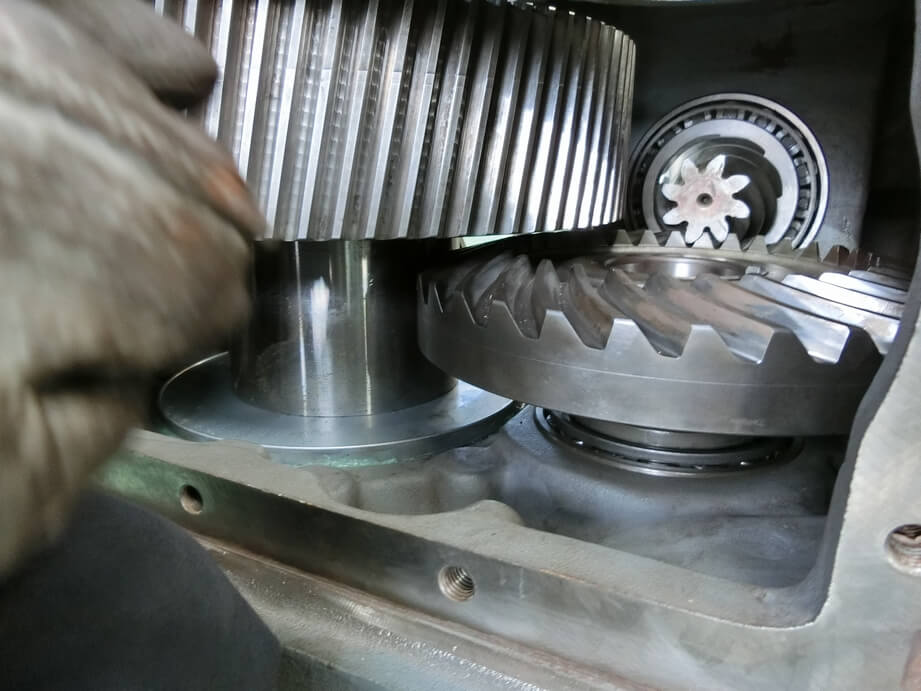

For the box-shaped reducer, we will go ahead and assemble it with ingenuity

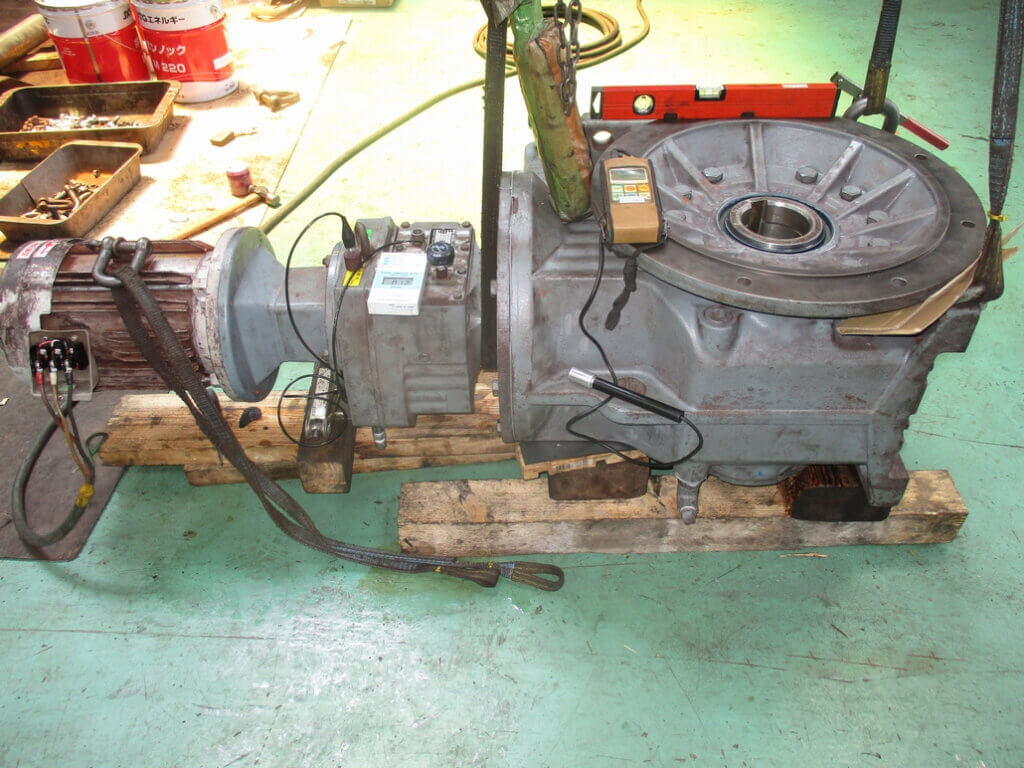

Trial run after completion of reducer assembly

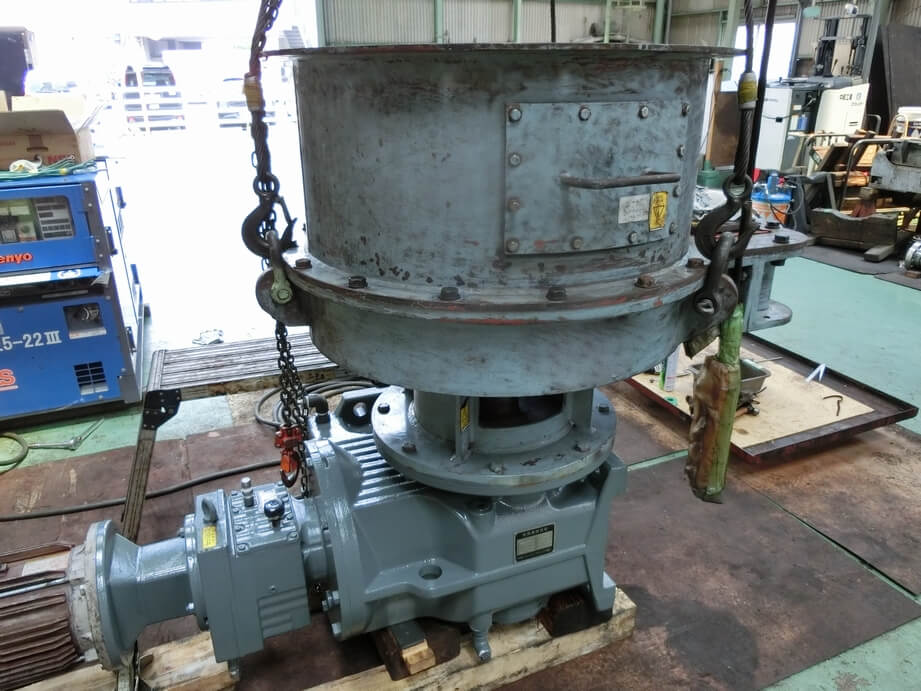

After the assembly of the speed machine is completed, the feeder is being assembled
