Maintenance of decommissioned actuators

April 28th, 2025

Machine maintenance

A request was received to service an actuator used to control piping equipment. The unit would not move when the electric motor was rotated, so we asked for one set to be brought in to check the situation. After diagnosis, we found that servicing was required, so we removed everything, including the relay switch, and started work.

Unloading and disassembly

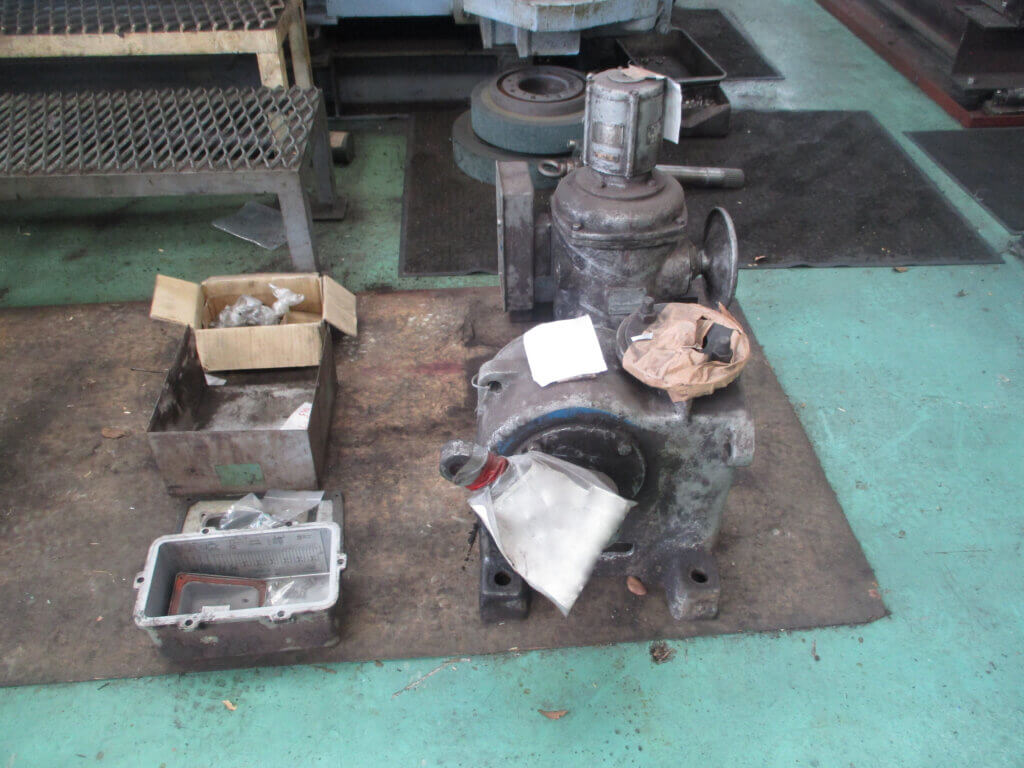

アクチュエーター搬入状態 — It consists of two machines and was delivered in pieces

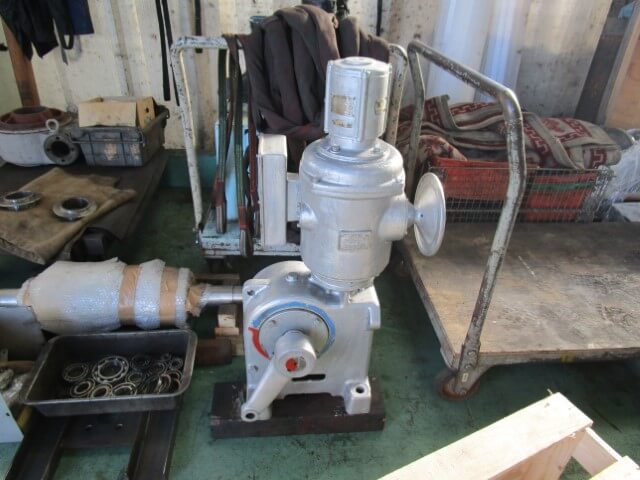

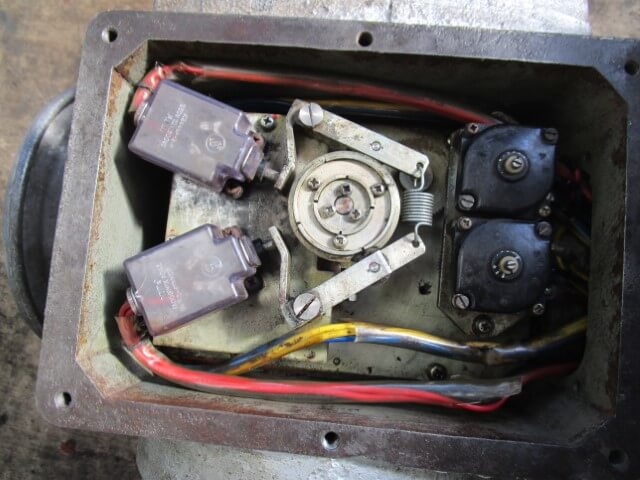

リレースイッチも元通り取り付け — Relay switch also installed as original

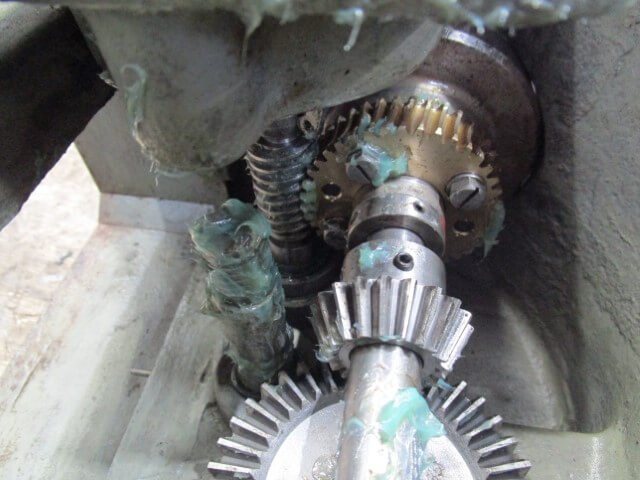

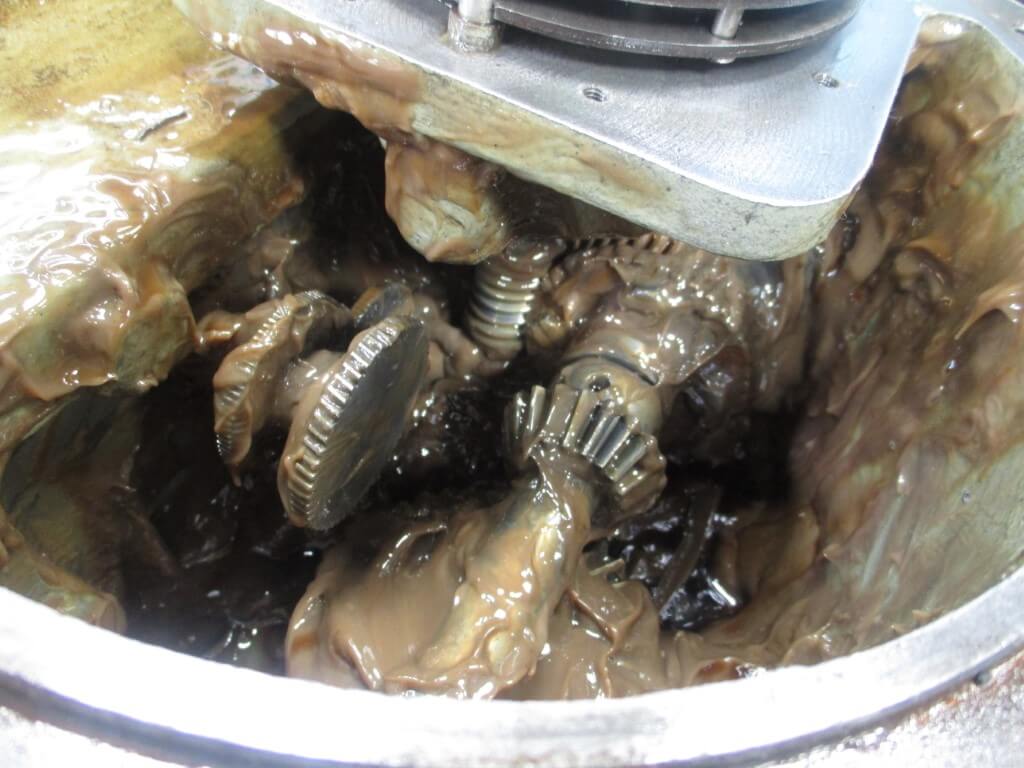

アクチュエーター複雑な部品点数3 — The mechanism is controlled by a combination of many different types of gears, such as straight gears, face gears and worms. Carefully remove

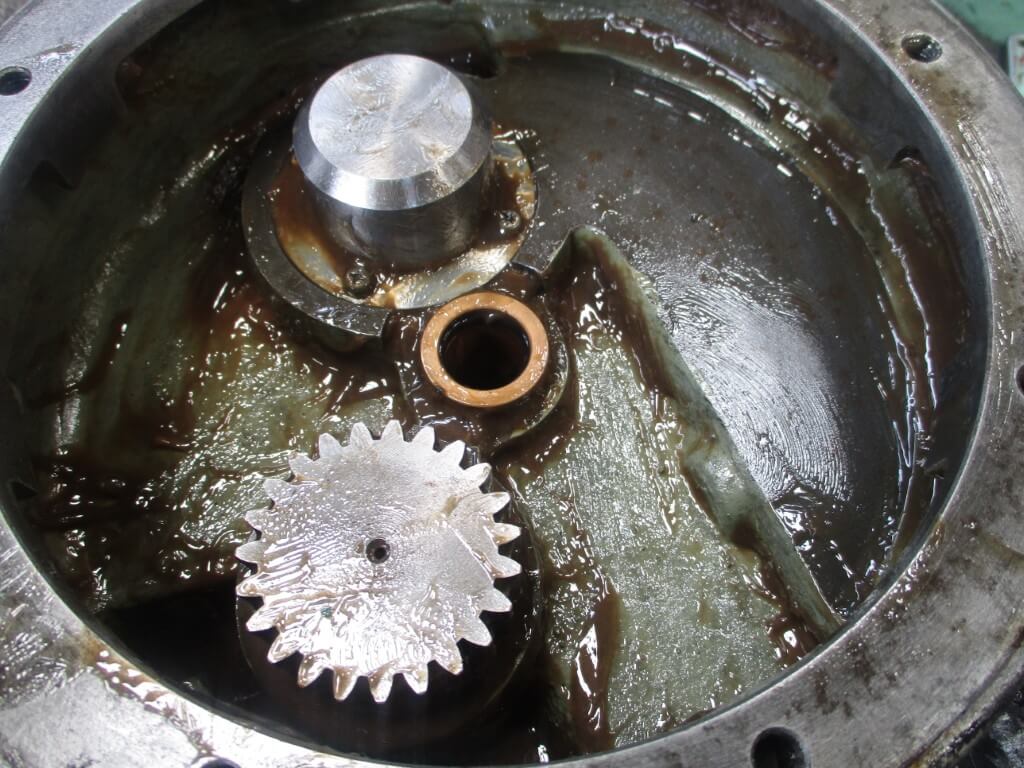

アクチュエーター複雑な部品点数2 — Remove spur gears, mating pinions, etc

Gears and fits are inspected

Having completed disassembly, each component part is inspected. As there are a large number of parts, the condition of each of the component gears and the state of their fit together are assessed. As each element affects each other, the inspection of this device, which has a large number of parts, was carried out with great care and it was decided that two repairs and the manufacture of four parts were necessary.

嵌め合い部を補修ウォーム軸 — Repair mating parts of worm shafts

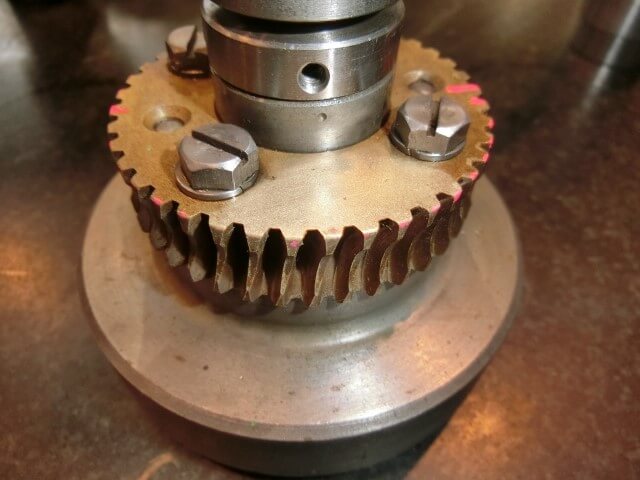

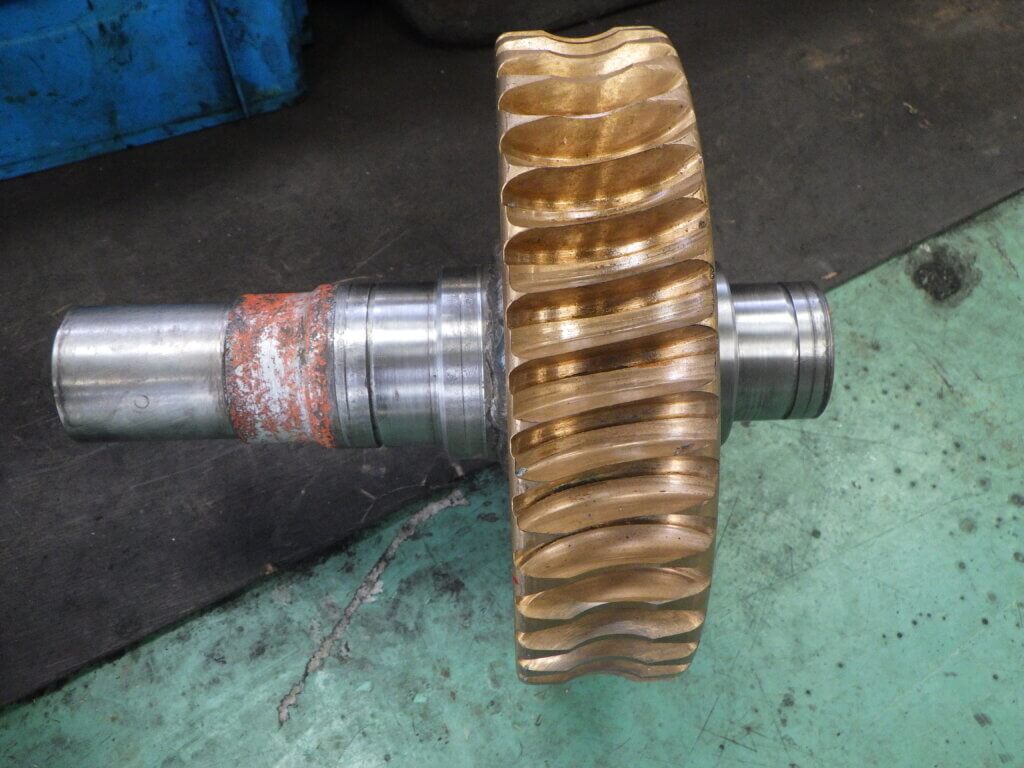

ウォームホイル嵌め合い部の補修 — Repair of worm wheel mating parts

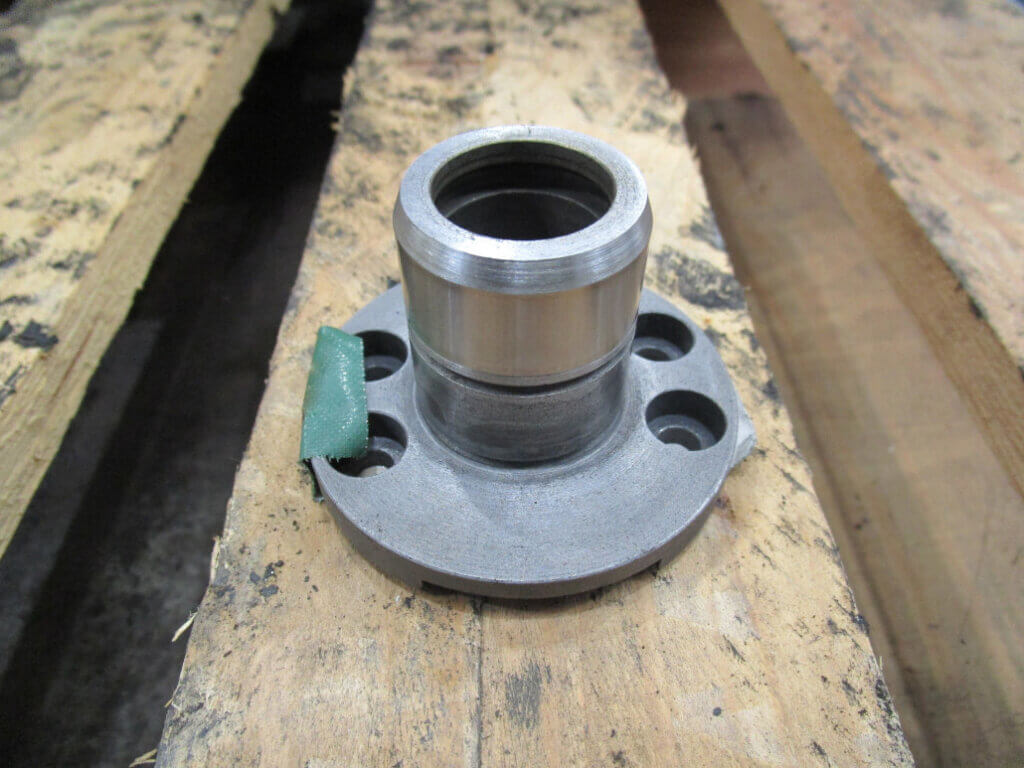

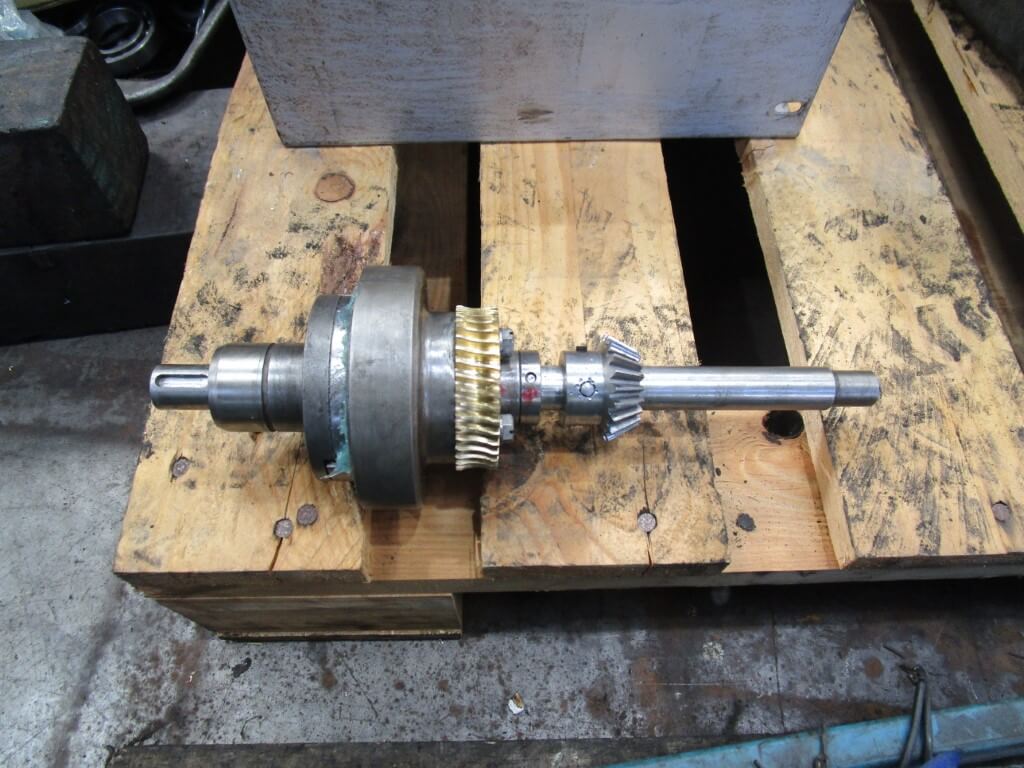

クラッチ部の補修 — Repair of clutch mating parts

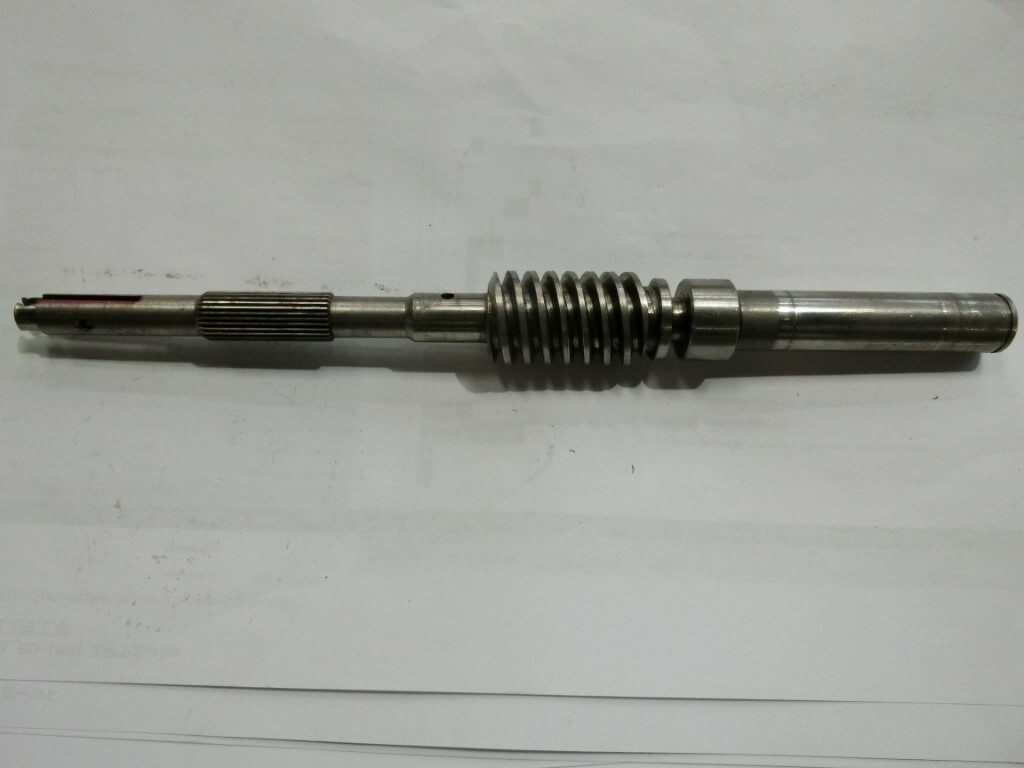

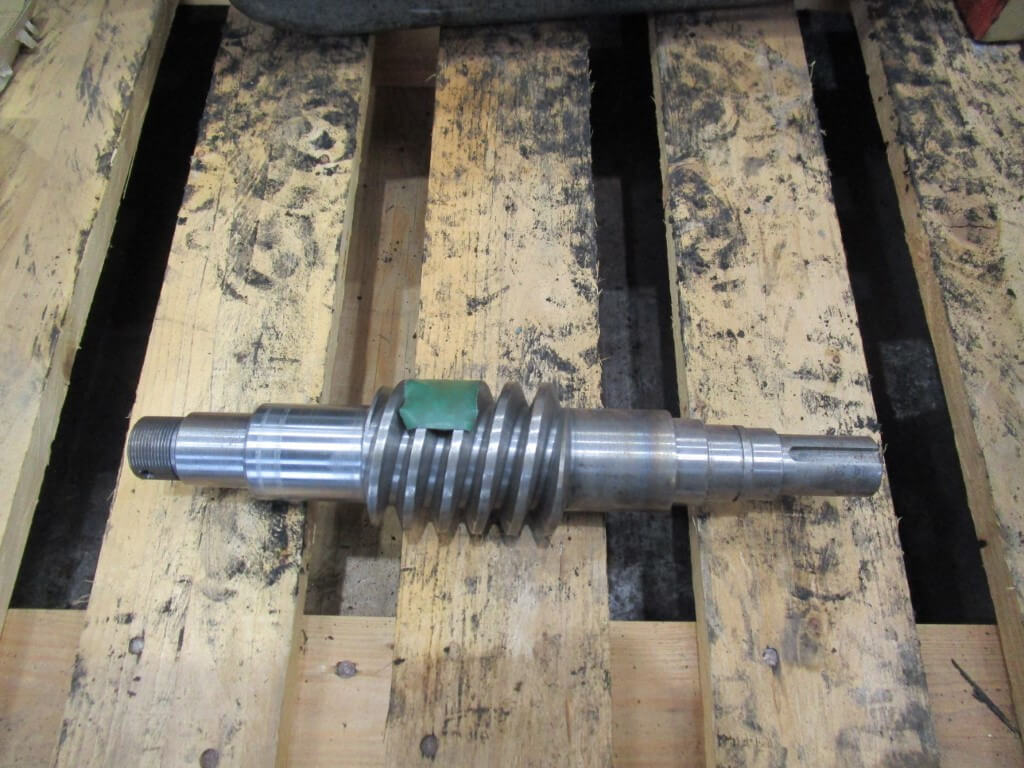

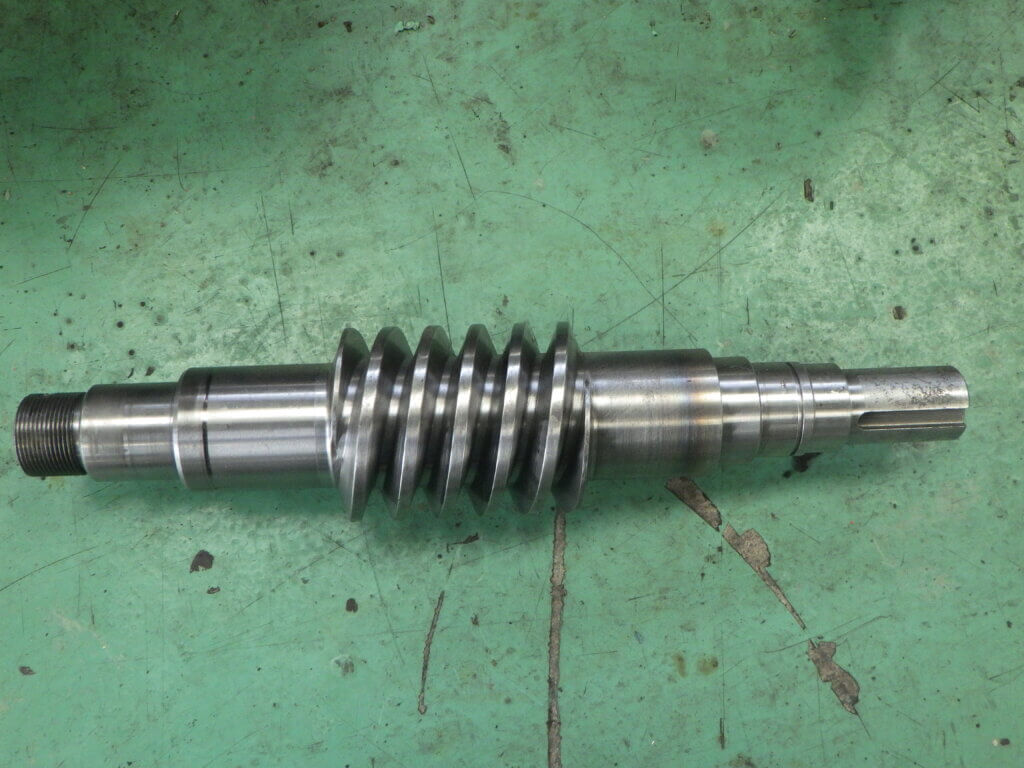

ウォーム軸の新規製作 — Newly manufactured worm shafts

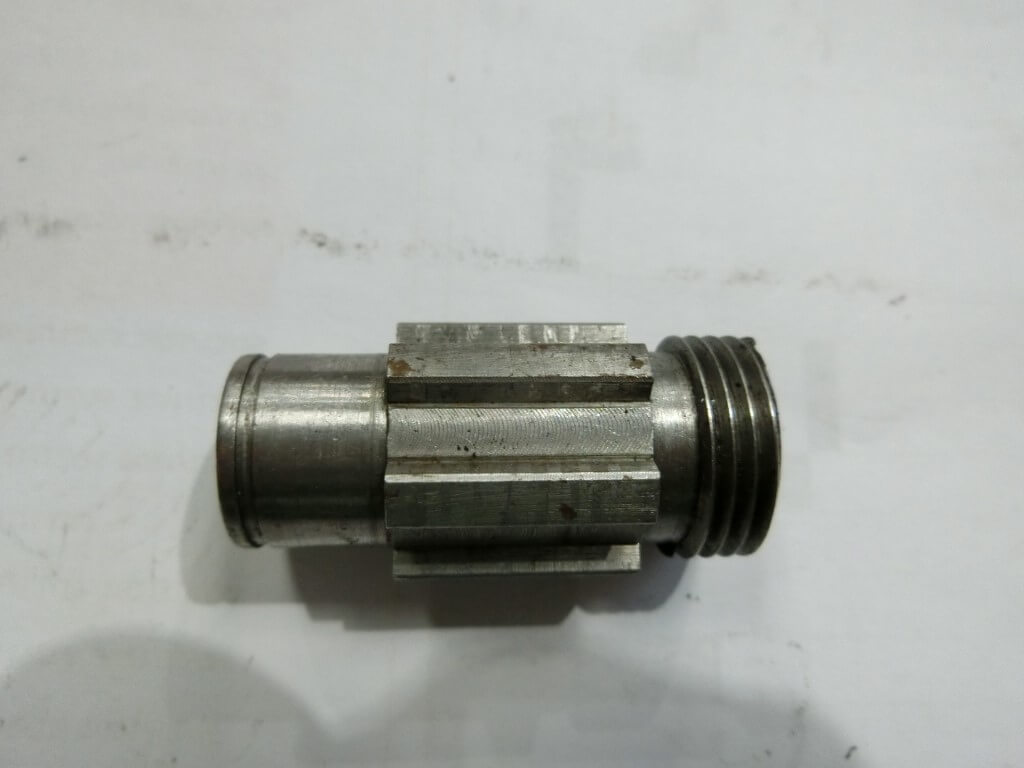

インスプラインの新規製作 — Parts with splined gears machined on both outer and inner sides

Repair of components and reverse engineering of gears

ウォーム軸の嵌め合い部を補修 — Repair mating parts of worm shafts

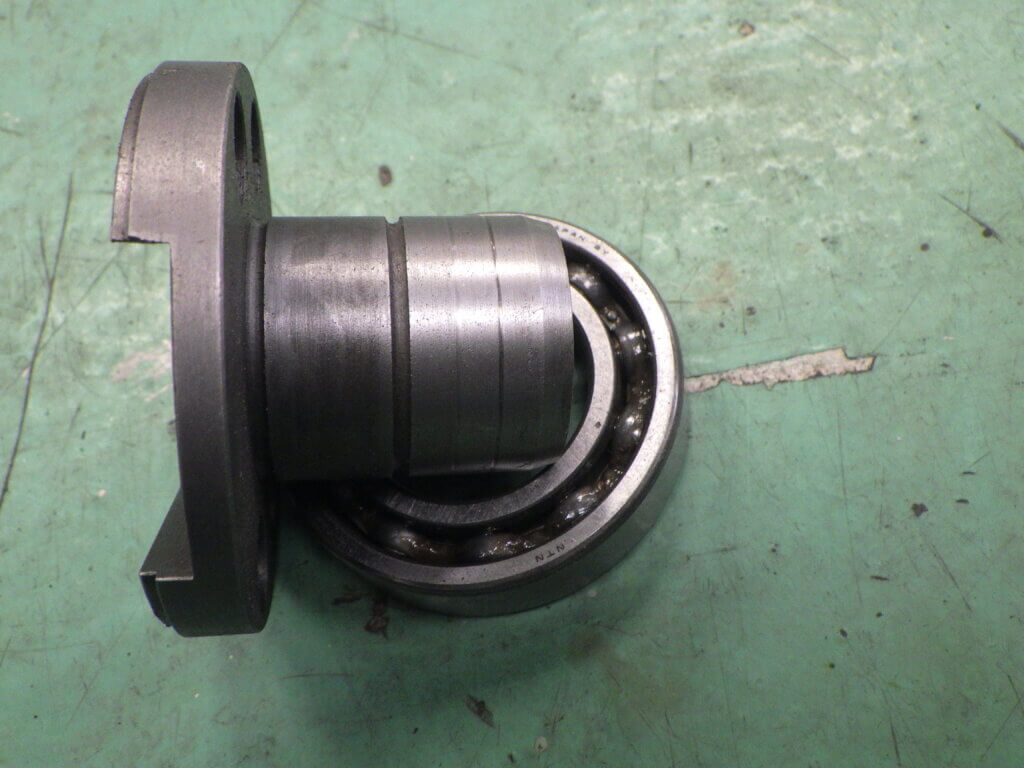

クラッチのリップ痕を補修 — Repair lip marks on clutch

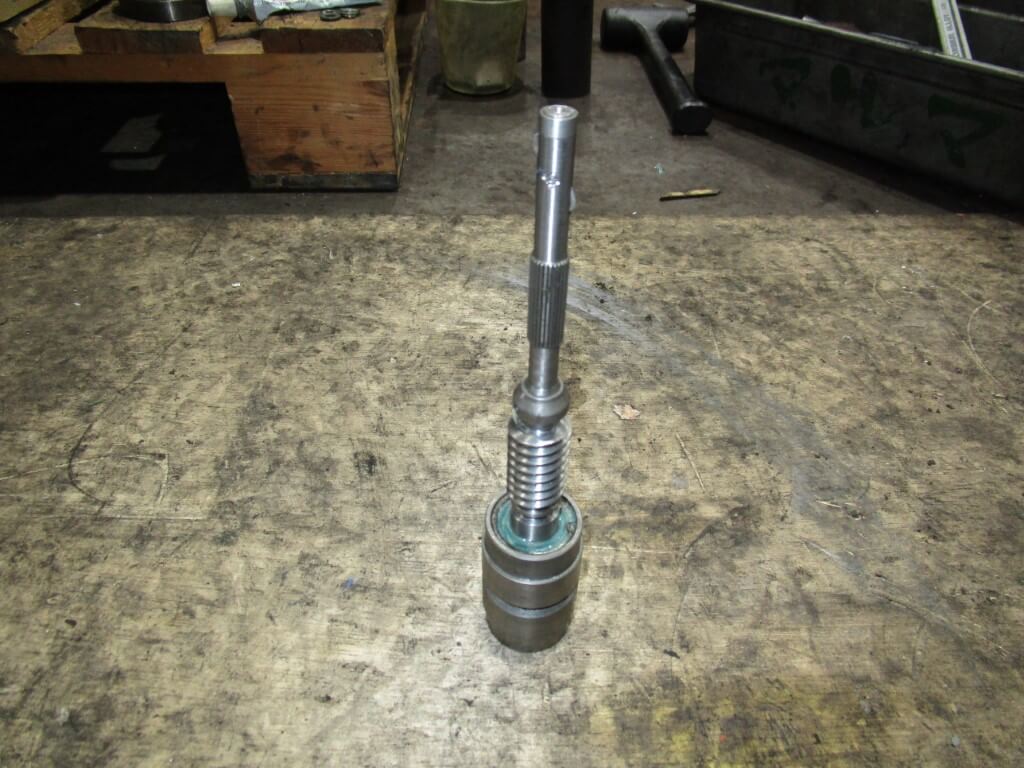

製作したウォーム軸の組付け — Assemble the worm shaft you have made

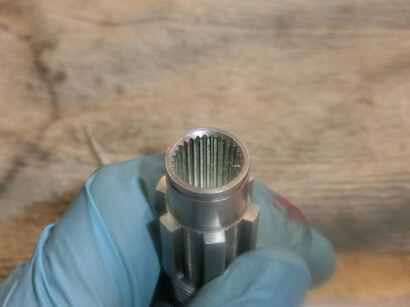

製作したスプラインの内径側 — Produced inspline with very small modules

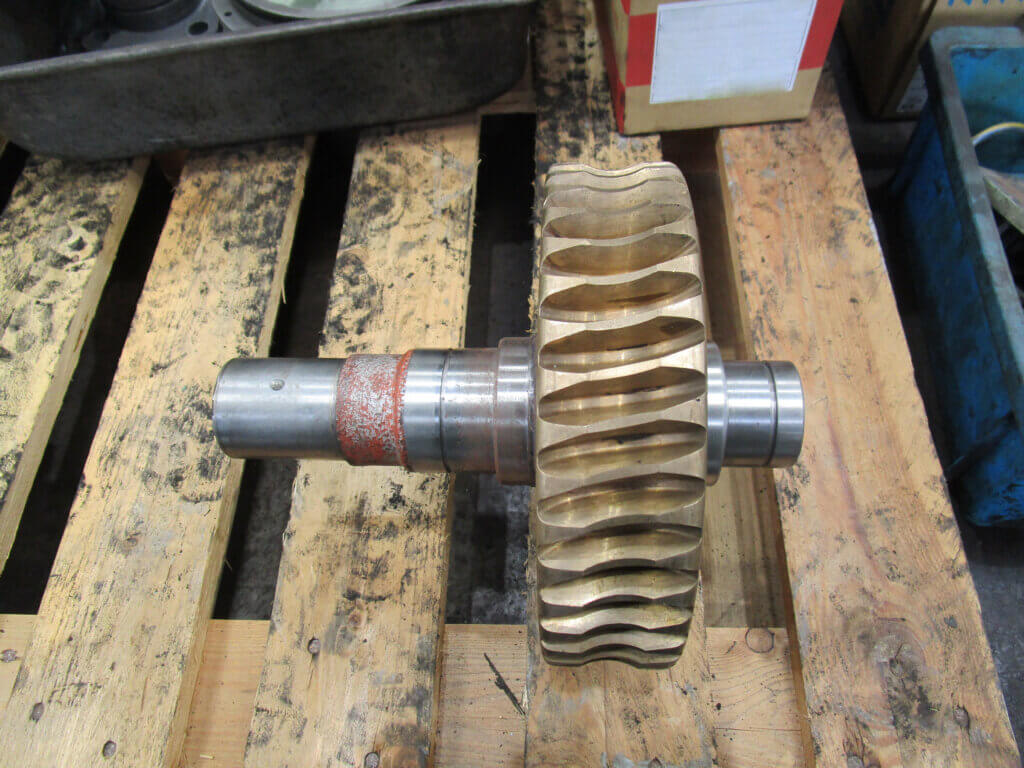

軸に適合したウォームホイル — Produce a worm wheel that fits the diverted boss properly

Start of assembly

歯車を1つづつ組み立て — The gears were assembled one by one, adjusting the manufactured gears, the diverted gears and the manufactured gears with each other

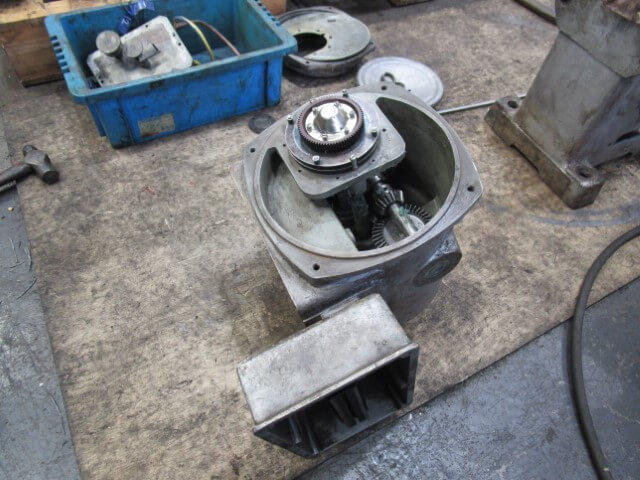

機構部分の組み立てを完了 — Assembly of the gear mechanism is now complete

Suitable for machines with various gear combinations

Not only machines with a combination of similar gears, but also complex mechanisms with a combination of different gears can be serviced while assessing the different gearing elements. While assessing production, diversion and repair, maintenance can be carried out on time and at an appropriate cost, taking the budget into account.
