Manufacture of spline shafts

A request was received for the manufacture of a self-built machine to be installed during the manufactA request to manufacture a spline shaft, part of a crane component, was received and considered. As it was responsible for transmitting the drive, a 1.5 m shaft, spline teeth and a mating spline joint were also manufactured to contribute to the restoration.

Manufacture of spline shafts

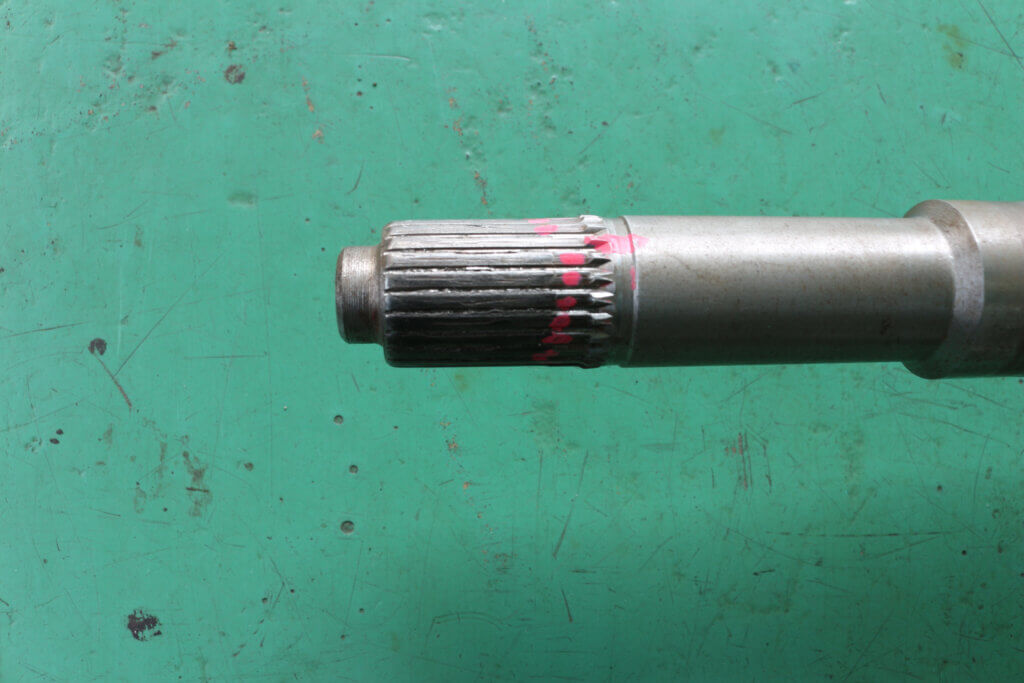

The counterpart of the worn spline shaft no longer exists and can only be used as a reference for the healthy part of the worn tooth. Although there are only a few elements that can be measured, the study could be repeated and fabricated as much as possible in order to produce the same

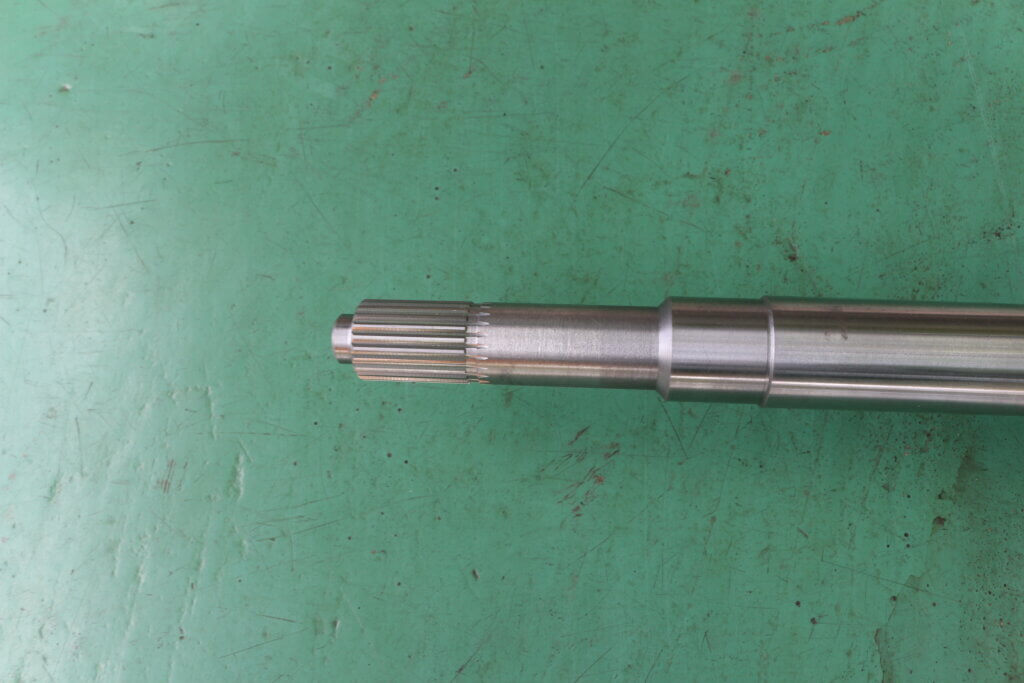

Completed spline shaft

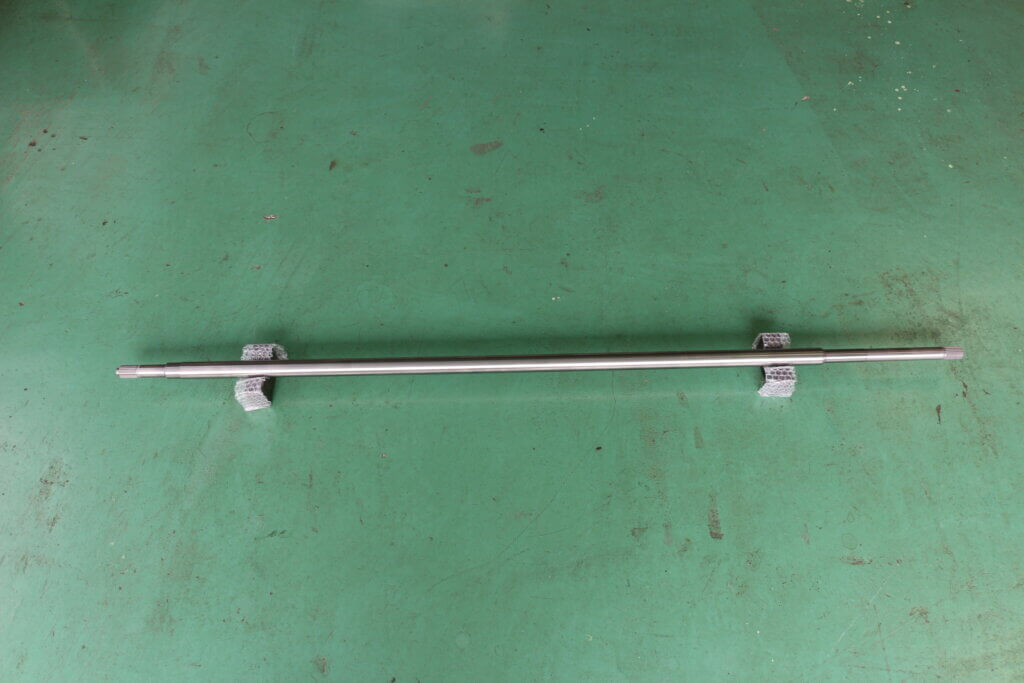

CIt is 1.5 m in length, and the production was carried out with consideration given to all parts other than the gears to ensure that they functioned with precision
